PROJECT DUSTBUSTER SPEEDFORM

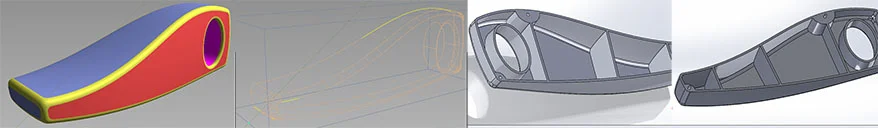

The goal of this project is to develop a five sided surface model with G1 tangenecy across its symmetry plane that can become a solid body. With parametric editing features, rib and location points can be made and easily edited. Make sure your form fits within a 4.0 inch by 12.0 inch by 12.0 inch volume.
Make sure you build 4 locations where a hole of 0.15 inches in diameter with a depth of 0.20 inches can be located with a matching post. Refer to the videos below:
Please submit a zip archive named as LASTNAME_FIRSTNAME_DUSTBUSTER.zip with the following contents
- wire file containg surface data
- iges or step file export from alias to be imported into solidworks
- solidworks part file containing two solid bodies with necessary features.
Project Due Date is end of the day Friday, September 12, 2014
PROJECT 3D BRANDED ABSTRACT OBJECT
The goal of this project is to exercise additional workflows between surface to solid. Part of the the 3d branded abstract object is to be milled and an component is to be 3d printed. Below are some videos demonstrating how to use split surfaces to generate multiple solid bodies in Solidworks.
